3D printer accessories MKS PWC V2.0 auto power off after printing end finish off module
For the current 3D printer is in standby, the nozzle for a long time in the heating state, resulting in high temperature easily leads to fire, short circuit and other issues,Makerbase R & D personnel developed a product MKS PWC module which is not only solves the waste of electricity but also solves a great security risk!
MKS PWC V2.0
Shipping list:
1pcs*MKS PWC V2.0 control board
1pcs* Non-self-locking pushbutton switch
1pcs* 3pin70cm XH2.54 male head - a DuPont cable
1pcs*3pin 70cm XH2.54 male - an independent DuPont cable
Overview
For the current 3D printer is in standby, the nozzle for a long time in the heating state, resulting in high temperature easily leads to fire, short circuit and other issues,Makerbase R & D personnel developed a product MKS PWC module which is not only solves the waste of electricity but also solves a great security risk!
Compared with V1.0, MKS PWC V2.0 increases the protection circuit, uses the weak electric control switch, repairs the poor contact problem of MKS PWC V1.0.

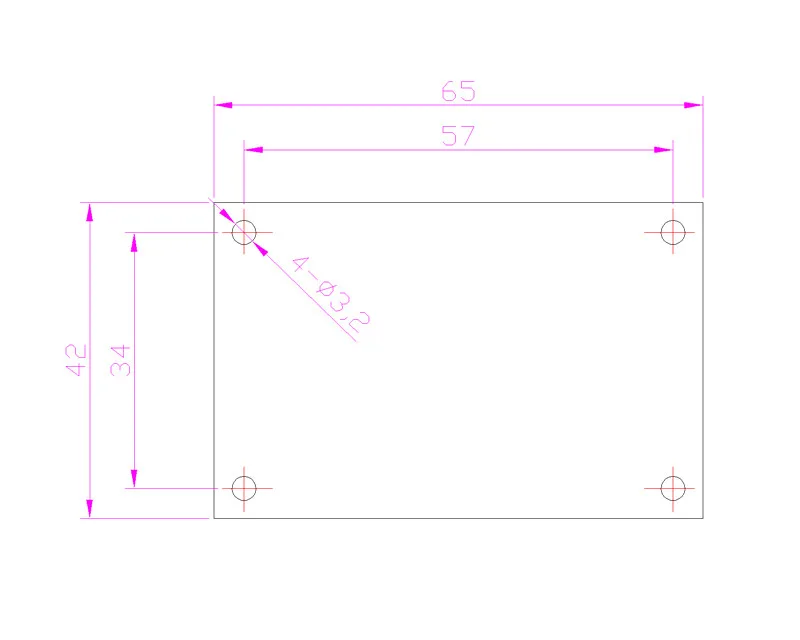

MKS PWC V2.0 Installation Dimensional Drawing:
Wiring diagram:
To achieve the function that it will shutoff when finishing printing, in addition to the essential MKS PWC hardware, we also need to modify the mainboard and touch screen firmware.
| Brands | 1.75mm |
|---|
