MKS DET power outage detecting module power monitor detector for MKS TFT touch screen

MKS DET

Notice :

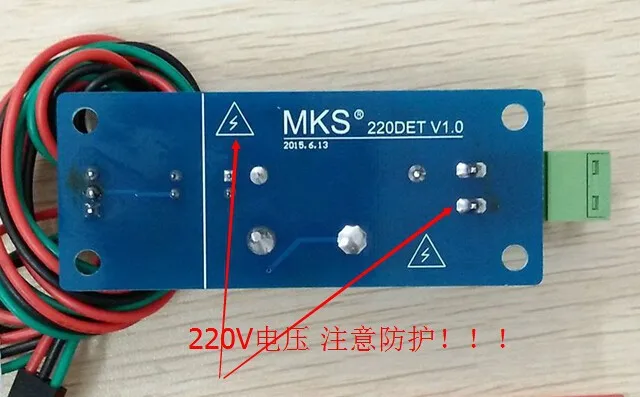

It will generate 220V voltage when  input the module ,

please prepare  good protection.

Product includes :

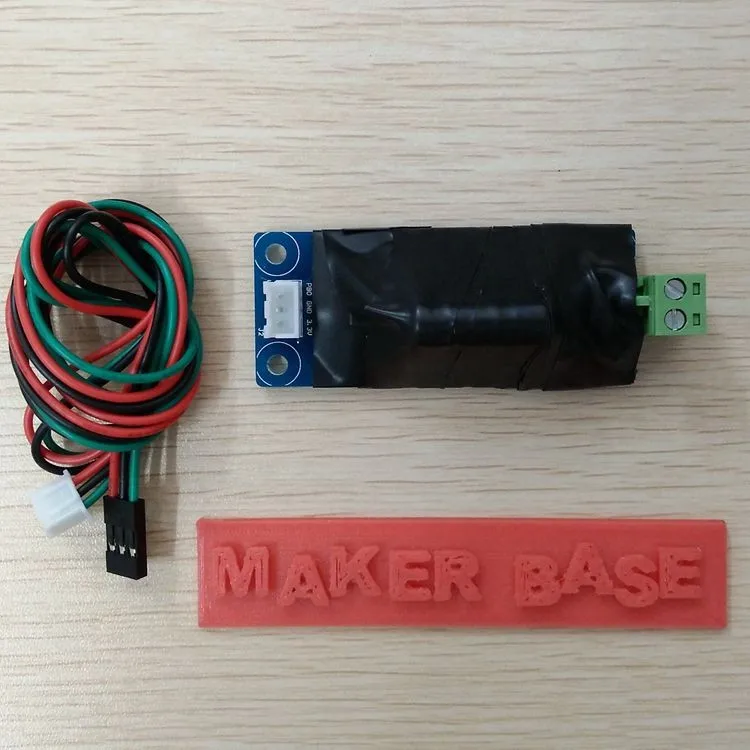

1pcs * outage detector module

1pcs * 3Pin  Dupont  Cable

Product Introduction :

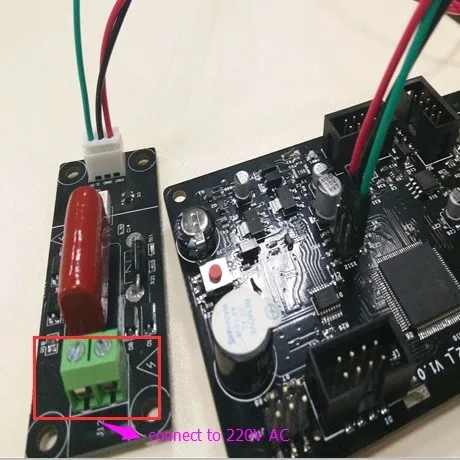

1.  Connect the power input terminal(blue)  of outage detection module,

    as well as UPS to 220V(or 110V) power.

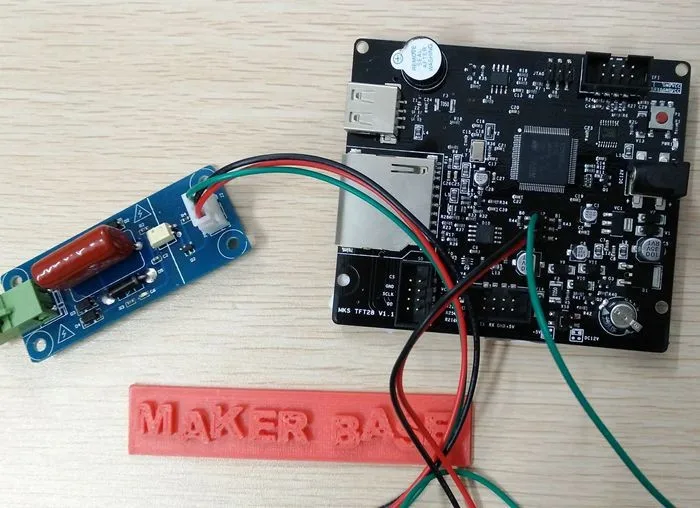

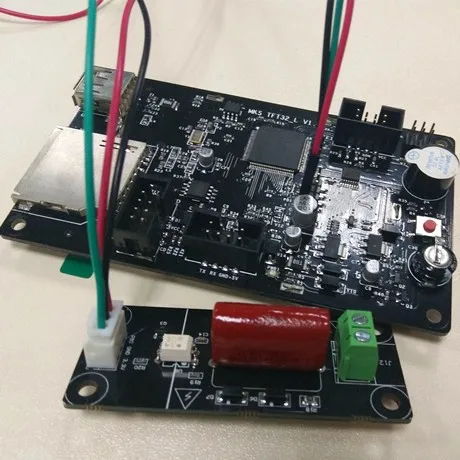

2.  Connect the signal output terminal(3pins)  of outage detection modul

    to MKS TFT (PB0-->B0 Gnd-->- 3.3V-->+)

3.  After MKS TFT receive outage message, it will automatically  enter into

   printing  suspending  status. And the printer head will move from the model .

4.  MKS TFT carries with function of outage continued  printing.

   But it only saves  printing state if suddenly suffers from power cut.

   And the printer head cannot move .

Luckily , using outage detection module and UPS can totally handle

this problem .Moreover , UPS only cost 1min .

It will generate 220V voltage when  input the module ,

please prepare good protection like this :

Connection
