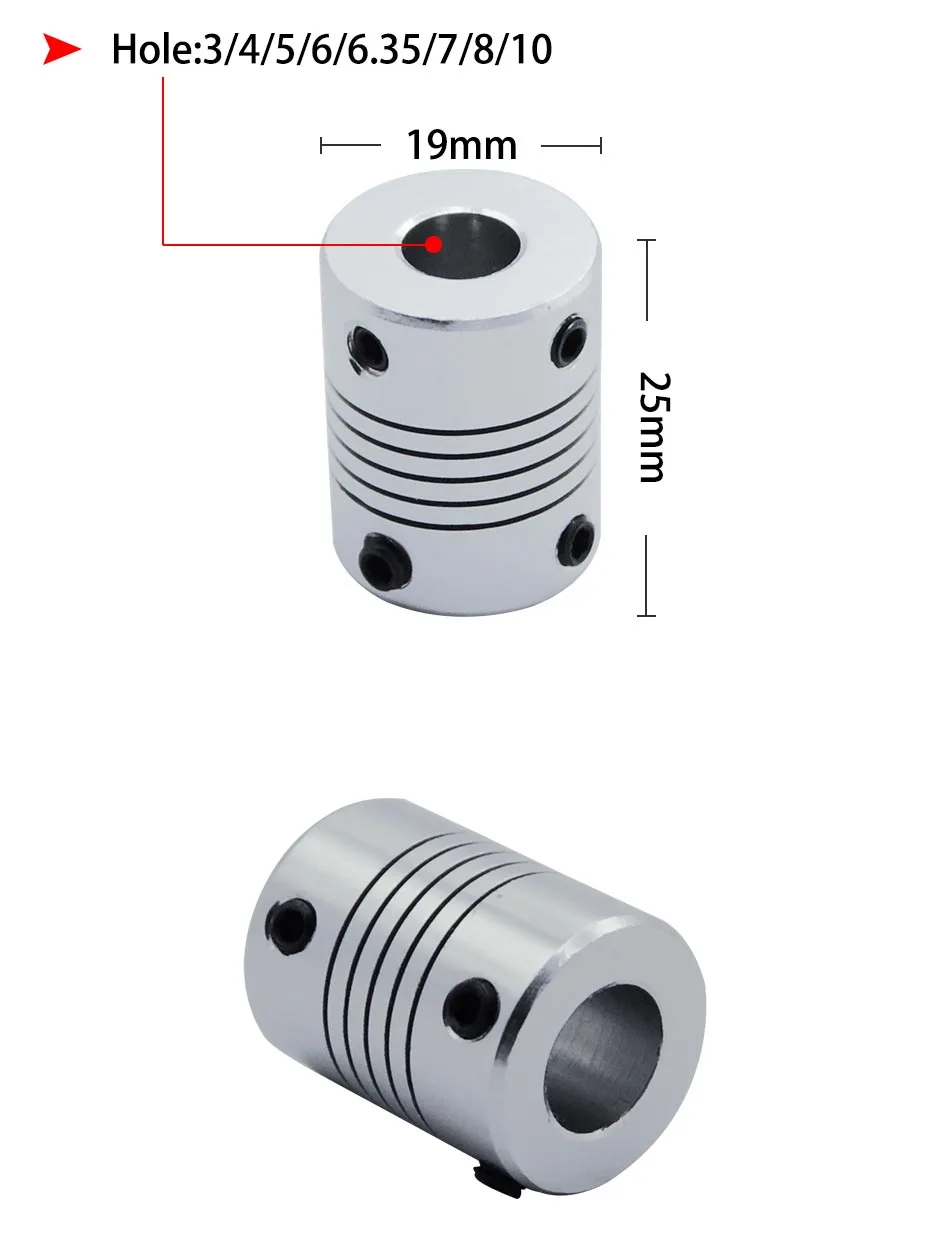

D19*L25 Aluminium CNC Stepper Motor Flexible Shaft Coupling Coupler
Connect your stepper motor shafts to the shafts of your lead screws with this flexible aluminum coupler which is precision-machined for superb quality and excellent reliability.
- A lightweight locking shaft coupler
- Flexible design helps compensate for misaligned parallels and axial
- Zero rotation clearance
- Oil-resistant and anti-corrosive
- Often used to connect servo motor, stepper motor, encoder, screw driving, machine platform, etc.
- Shaft :Example , 6.35mm x 8mm (inner diameter for two ends)
- Length: 25mm
- Outer Diameter:19mm
- MNM:0.5N
- m,z Maximum Torque:1N.m
- Material: Aluminium
Size explains: for example, '3X3', that means both ends ID are 3mm, please know!!!
Connect your stepper motor shafts to the shafts of your lead screws with this flexible aluminum coupler which is precision-machined for superb quality and excellent reliability.
- A lightweight locking shaft coupler
- Flexible design helps compensate for misaligned parallels and axial
- Zero rotation clearance
- Oil-resistant and anti-corrosive
- Often used to connect servo motor, stepper motor, encoder, screw driving, machine platform, etc.
- Shaft :Example , 6.35mm x 8mm (inner diameter for two ends)
- Length: 25mm
- Outer Diameter:19mm
- MNM:0.5N
- m,z Maximum Torque:1N.m
- Material: Aluminium

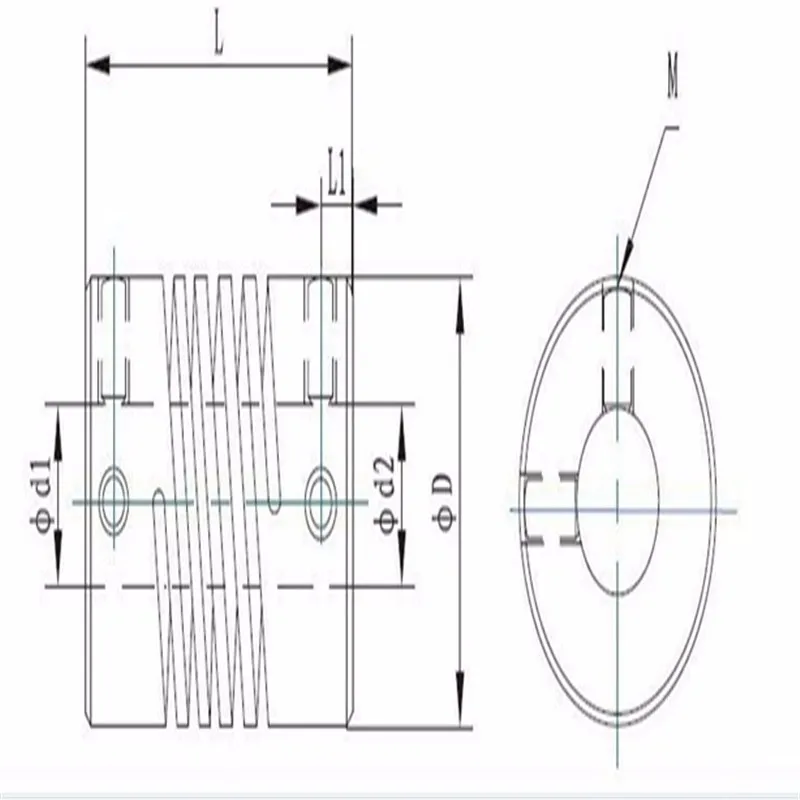

Specification Table
| 3*3 | 3*4 | 3*5 | 3*6.35 | 4*4 | 4*5 |
| 4*6 | 4*6.35 | 4*8 | 5*5 | 5*6 | |
| 5*6.35 | 5*8 | 6*6 | 6*8 | 6*10 | 7*7 |
| 8*8 | 8*10 | 9*9 | 10*10 | 6.35*6.35 | 6.35*8 |
| 6.35*10 | 4*6.35 | 4*10 | 7*8 | 7*8 |
Packaged Included
1 X Shaft Coupler
| Brands | 1.75mm |
|---|
