3D printer auto-leveling external sensor Z-probe compatible with most nozzles

$5.50
In stock
SKU auto-leveling external sensor Z-probe

This z-probe is developed for 3D printer leveling. As an external leveling sensor, it directly triggers from the nozzle, which greatly improves the printing platform accuracy. The leveling effort is much better than probe type, inching switch type, Ohmic proximity switch type and steering gear type.

Name: 3D printer auto-leveling external sensor Z-probe,compatible with most nozzles

Shipping list:

1pcs * Z-Probe sensor

1pcs * Indicator panel

1pcs * 3pin cable



This z-probe is developed for 3D printer leveling. As an external leveling sensor, it directly triggers from the nozzle, which greatly improves the printing platform accuracy. The leveling effort is much better than probe type, inching switch type, Ohmic proximity switch type and steering gear type.

Z-Probe7



Working with indicator panel, the super light will light up when the z-probe triggers. It’s more controllable.

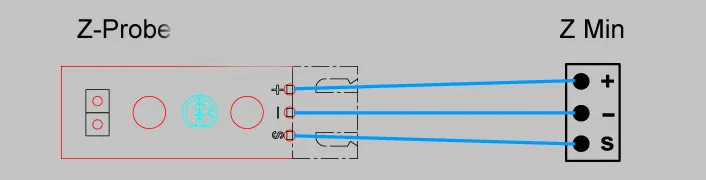

The connection of indicator panel

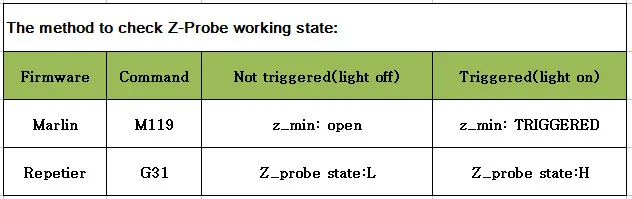

Set Z Mini “Always-on” on the firmware. it’s not allowed to operate with power on, otherwise, the controller board and indicator panel would burn out. Wrong wire connection would have the same result.

Z-Probe8

d6e21aef907fa6a20b7a5107cbcea46_

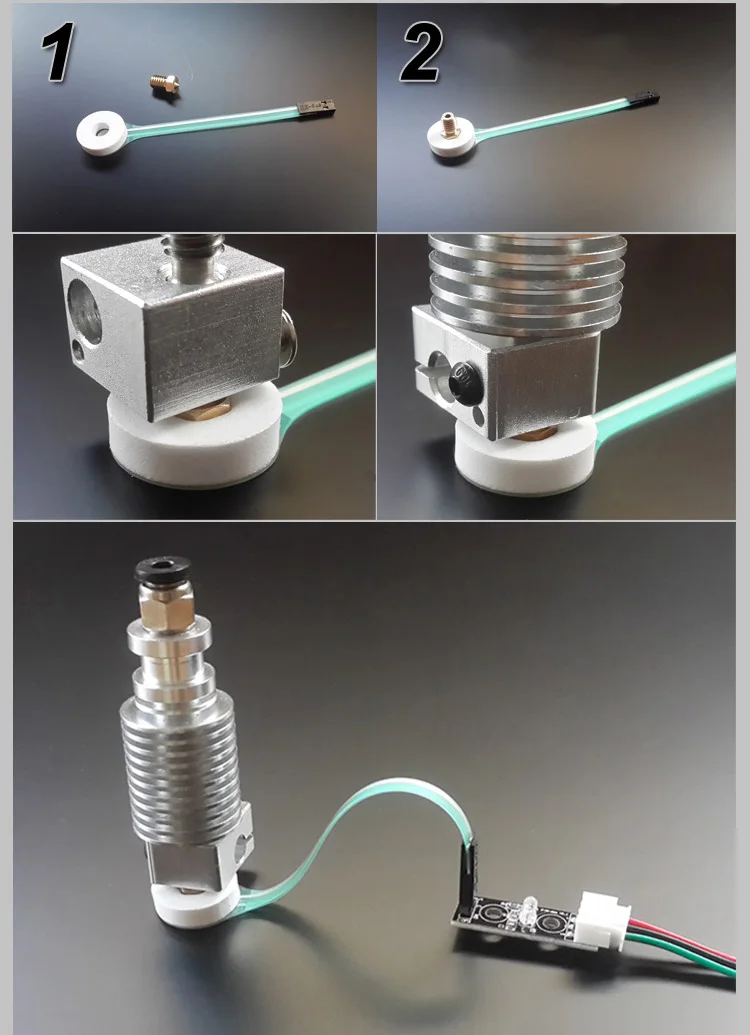

The use of Z-Probe sensor with indicator panel

The Z-Probe can’t afford the high temperature, so it can’t be used until the nozzle drops to room temperature.

Z-Probe9

More Information
Brands 1.75mm
